Techne CAD/CAM 1.0.31.0 RC

2.5D design tool with an emphasis on CAM

A Windows only 2.5D CAD CAM application. The user experience tightly integrates the CAM aspects when doing design and layout. The target users will layout their design and then immediately generate CNC code.

Techne CAD/CAM 1.0.31.0 RC details

Author:
License: Freeware
Price: FREE
Released:
File size: 10.80 MB
Downloads: 291
Keywords: CAM design, CAD design, CAm designer, design, designer, CAM
Author URL: http://sourceforge.net/projects/technecadcam/

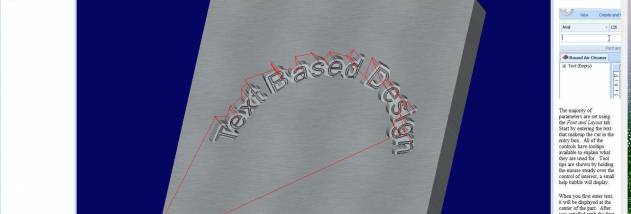

Techne CAD/CAM screenshot

User Rating: 3.5 (2 votes)

Techne CAD/CAM for Windows 10 - Full description

A Windows only 2.5D CAD CAM application. The user experience tightly integrates the CAM aspects when doing design and layout. The target users will layout their design and then immediately generate CNC code.

The goal is a design application closer to Adobe Illustrator than to AutoCAD. The user specifies machining aspects during object creation so that when the design/layout phase is completed the toolpath generation can occur automatically.

What is 2.5D? Objects created are flat (2D) but have a depth component. So you can create a square that will be machined at a specific depth but the depth will be constant accross the square.

It is not/does not:
A general purpose CAD (AutoCAD) type program.
Support reference dimension on the drawing.
Export or import major CAD file formats.

Features:

Multithreaded 3D part and toolpath preview
GCode toolpath generation
ShopBot toolpath generation
Text based design support
Built-in geometric shapes
CSG style combinations of cuts
Unlimited Undo/Redo
Limitted Adobe Illustrator import support
Spline or simple based lines
Pocket toolpaths for closed geometries
Flip or mirror designs
Manually trace over bitmap image
Grid layout with snap to line option
