Blue Cat's Digital Peak Meter Pro x64 for Windows 10 - Full description
Blue Cat's Digital Peak Meter Pro is an audio metering and signal-analysis plug-in for musicians, audio engineers and producers who need to inspect levels and stereo behavior inside an audio workstation. Its customizable meters display peak and RMS levels, while several scale options support different approaches to level monitoring, including K-System scales K-10, K-12, K-14 and K-16. The plug-in is designed not only to show signal levels but also to turn those measurements into controls for other audio or MIDI equipment.

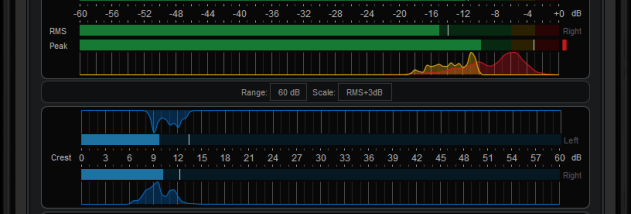

Meter displays can be tailored to suit a session, and graphs trace how the audio envelope changes over time. Peak and RMS envelopes can be viewed together, reversed or modified to create a response suited to a particular task. The mid-side switch helps examine the mono and side components of a stereo signal, making it easier to identify potential mono-compatibility problems or compare the stereo content of sources. These tools are useful both for checking individual tracks and for keeping an eye on several signals during a mix.
The envelope data can be recorded as automation curves or sent as MIDI CC messages. In a compatible host, this lets signal level drive other plug-ins in real time, for example to create ducking or control a side-chain effect. Adjustable MIDI response curves shape how each parameter reacts, helping match the output to the range expected by a receiving device. MIDI control can also link audio activity to external hardware, video effects or lighting systems, extending the meter's role beyond conventional mix monitoring.
Typical uses include checking vocal and voice-over levels, monitoring multiple tracks, setting up side-chain compression and controlling dynamic stereo enhancement. The envelope graphs and automation output are also useful when a producer wants to study level changes over time and reuse that behavior as a control signal. As with other audio plug-ins, its automation and MIDI routing depend on the capabilities and setup of the host application and connected devices.
Digital Peak Meter Pro x64 is a 64-bit audio plug-in from Blue Cat Audio and is offered as demo software. The supplied operating-system compatibility includes 64-bit editions of Windows Vista, Windows 7, Windows 8 and Windows 10. A compatible audio host is needed to load and use the plug-in; the available plug-in format depends on the host and installation package.
