Gmsh is an open-source tool for creating and inspecting two- and three-dimensional finite element meshes. Users can build geometry in its graphical interface or define it with a scripting language, then generate structured or unstructured meshes. Tools include boundary-layer and transfinite meshing, mesh refinement, several element types and post-processing for viewing simulation results. Meshes can be exported for use with other computational software.

Gmsh 4.15.2 details

Author:
License: Open Source
Price: FREE
Released:
File size: 37.40 MB
Downloads: 533
Keywords: cad mesh import, 2d mesh generator, CAD, finite element software, Gmsh, engine, CAD engine, gmsh mesh generator, design, grid generator, Christophe Geuzaine, model, mesh, mesh post processing, finite element meshing, 3D design, 3D mesh generator, open-source software, 3d mesh software, CAD interface
Author URL: https://gmsh.info/

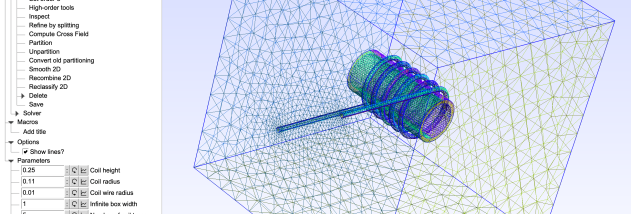

Gmsh screenshot
GmshCADWindows 11, Windows 10 64 bit

User Rating: 2.8 (22 votes)

Gmsh Awards

Windows 10 download editor's pick

Gmsh for Windows 10 - Full description

Gmsh is an open-source mesh generator and pre- and post-processing tool for finite element work. It is used by engineers, researchers and educators to create two- and three-dimensional meshes for numerical simulation. Geometry can be built inside the program or imported from CAD files, then prepared for use in compatible analysis software.

The graphical interface supports interactive geometry and mesh creation, while Gmsh's scripting language lets users define repeatable workflows and automate detailed tasks. A script can describe points, curves, surfaces and volumes, along with meshing settings, so models can be regenerated or adjusted without repeating every operation by hand. Both structured and unstructured meshes are supported, giving users different ways to represent a model's geometry and simulation needs.

For complex models, Gmsh includes a geometry kernel and tools for refining and optimizing meshes. Users can apply transfinite meshing to control mesh structure and boundary-layer meshing to create finer elements near selected surfaces. Supported element shapes include tetrahedra, hexahedra, prisms and pyramids. These options help tailor the mesh to the shape of a model and the requirements of a finite element calculation.

Gmsh can also display and inspect simulation results through its post-processing tools. Plugins extend its capabilities, and a range of output formats helps transfer meshes to other computational applications. The combination of scripting, visual editing and result visualization supports workflows from initial geometry setup through mesh preparation and review, whether for a single study or a recurring simulation process.

Gmsh is free and open source. The Windows download is intended for 64-bit Windows 10 and Windows 11 systems. Its mix of a graphical interface and script-based control makes it suitable for both users beginning mesh generation and experienced practitioners who need precise, repeatable control over model preparation.
