Gwyddion is an open-source application for visualizing and analyzing scanning probe microscopy height data from AFM, MFM, STM and SNOM/NSOM systems. It offers false-color and 3D displays, surface leveling and correction, profile extraction, filtering, grain measurement, roughness statistics, and Fourier and wavelet analysis. It can also be used with profilometry and other height-field data.

Gwyddion 2.66 details

Author:
License: Open Source
Price: FREE
Released:
File size: 25.10 MB
Downloads: 666
Keywords: Gwyddion software, x64 architecture, height field analysis, gwyddion microscopy analysis, Petr Klapetek, analyze, spm data visualization, surface roughness analysis, scanning probe microscopy software, Windows 10 compatible, afm image analysis, data visualization, visualize, data analysis, David Necas, visualizer
Author URL: http://gwyddion.net/

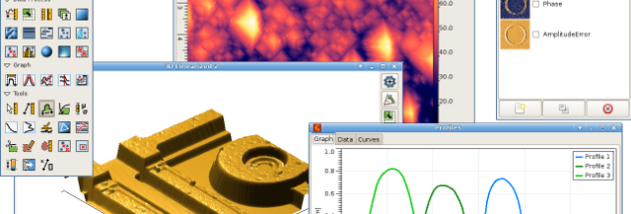

Gwyddion screenshot
GwyddionCADWindows XP, Windows Vista, Windows Vista x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 10, Windows 10 x64, Windows 11

User Rating: 2.3 (18 votes)

Windows 10

x32

Windows 10

x64

Gwyddion Awards

Windows 10 download editor's pick

Gwyddion for Windows 10 - Full description

Gwyddion is a modular application for visualizing and analyzing scanning probe microscopy data, especially height fields produced by AFM, MFM, STM and SNOM/NSOM instruments. Researchers, laboratory staff and students can also use it with profilometry measurements and other image or surface-height data. Its tools support inspection, correction and quantitative characterization of measured surfaces in a single desktop workflow.

Images can be displayed with false-color maps, shaded relief, logarithmic or gradient-based rendering, local contrast and edge-detected views. OpenGL provides interactive 3D displays using color or material representations, with editable maps and materials. Users can rotate, flip, invert, crop and resample data, combine datasets arithmetically, and read values or measure distances and angles. Leveling tools address common surface backgrounds through plane, profile, three-point, facet and polynomial methods, as well as correction along selected lines.

For closer examination, Gwyddion extracts profiles and supports distance measurements and export from profile graphs. Filtering includes mean, median, minimum, maximum, denoising, checker-pattern removal and convolution with a user-defined kernel. Data correction tools can remove spots and outliers, mark scars, correct scan lines, compensate for fast-scan drift and adjust XY-plane rotation or deformation. Masks let users select regions for statistical calculations or perform operations such as removal of masked data by Laplace or fractal interpolation.

Quantitative analysis covers roughness parameters, including ISO measures, surface inclination and area, histograms, correlation functions, power spectral density, angular distributions and fractal dimension. Grain tools mark features by threshold or watershed methods and calculate measures such as size, height, area, volume and boundary length. Two-dimensional Fourier and wavelet transforms provide frequency and scale-based analysis, while wavelet anisotropy tools help examine directional structure. Results can be explored across selected areas and through row or column statistics plots.

The open-source program is designed around modules and plug-ins, allowing its analysis capabilities to be extended. It is intended for Windows 10 and Windows 11, as well as other operating systems; the graphical interface uses GTK. Gwyddion is useful for microscopy workflows that need both visual inspection and numerical surface analysis, and its general height-field tools also suit other measurement and image-analysis tasks.
