CAD6 Industry

CAD6 Industry 2022.1.8.16

Industrial CAD/CAM with flexible CNC output

CAD6 Industry combines 2D/3D CAD design with CAM tools for preparing CNC production data. Its plug-in supports milling, drilling, turning, cutting, plotting, and positioning, with features such as pocket milling, cutter compensation, machining-order control, and 3D preview. A script-based post-processor provides output for multiple controller formats and can be adapted to machine requirements.

CAD6 Industry 2022.1.8.16 details

Author:
License: Trialware
Price: $2400.00
Released:
File size: 87.80 MB
Downloads: 347
Keywords: industrial design software, Windows 10 compatible, Malz++Kassner, milling cam software, CAD editor, 2D/3D drafting, industrial cad software, CAD, cnc machine programming, x64 software, cnc post processor, laser cutting cad cam, 2d 3d cad cam, 3D design software, CAD6 Industry, designer, CAD software, 3D design
Author URL: http://www.cad6.com

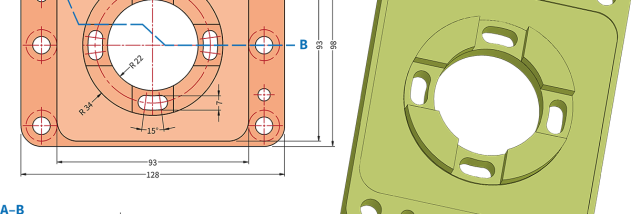

CAD6 Industry screenshot
CAD6 IndustryCADWindows 10 x64, Windows 11

User Rating: 0 (0 votes)

CAD6 Industry Awards

Windows 10 download editor's pick

CAD6 Industry for Windows 10 - Full description

CAD6 Industry is a 2D/3D CAD and CAM program for industrial design and CNC production. It combines drawing and modeling tools with a CAM plug-in that turns machining work into controller-ready data. Its script-based post-processor lets users adapt output to different machines and controller formats, making the software suitable for workflows that move from CAD geometry to production.

The CAM plug-in handles milling, drilling, turning, water-jet and laser cutting, other cutting operations, plotting, and positioning. For milling tasks, options include cutter compensation, pocket milling, control of milling order, and milling-time calculation. A graphical 3D preview helps users review the planned machining operation before generating CNC output. These tools connect the design stage to manufacturing rather than treating drawings as documentation alone.

Post-processing determines how machining instructions are formatted for a target controller. CAD6 Industry includes several post-processors, including universal DIN-ISO output, Siemens DIN-ISO for milling and turning with SINUMERIK 8XX controllers, and Heidenhain DIN-ISO for milling and turning with TNC 4XX controllers. A Heidenhain Klartext option supports milling with TNC 4XX controllers. Additional included formats cover DATRON CAT3D milling machines, isel NCP, HP-GL, and a minimal HP-GL output using only PU and PD commands. The universal, script-based design allows post-processing to be adjusted for other machine requirements.

Machine and tool settings provide control over the parameters used to generate output. Custom commands, including cycles and sub-programs, can be emitted through symbols, helping users tailor the resulting program to the capabilities and conventions of their equipment. This is useful when a production setup depends on specific machine behavior or controller instructions and requires more than a generic toolpath export.

CAD6 Industry is intended for industrial users who need to prepare 2D/3D designs and produce CNC data for supported machining processes. It is distributed as trialware and runs on 64-bit Windows 10 and Windows 11. The CAM functions and configurable post-processing make it relevant to workshops and manufacturing teams that need to review machining in 3D and generate output for a range of controllers and equipment.
