MITCalc Force shaft connection

MITCalc Force shaft connection 1.20

Designs of force shaft connections

Geometric designs and strength checks of force couplings of shafts with hubs (Interference fit, clamping connection). Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and is based on ISO, SAE, DIN, BS and JIS standards.

MITCalc Force shaft connection 1.20 details

Author:
License: Shareware
Price: $25.00
Released:
File size: 2.35 MB
Downloads: 35
Keywords: Shaft, hub, connection, force couplings, Interference fit, clamping connection, ANSI B4.1, ISO 286, DIN 7190, Strength check, bending moment
Author URL: http://www.mitcalc.com/index.htm

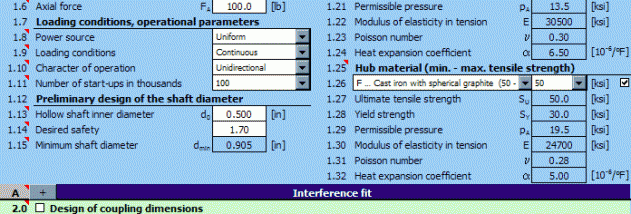

MITCalc Force shaft connection screenshot

User Rating: 5.0 (2 votes)

MITCalc Force shaft connection for Windows 10 - Full description

The calculation is intended for geometrical design and strength check of force couplings of shafts with hubs with a cylindrical contact area (Interference fit, clamping connection). The application provides solutions for the following tasks: - Design of force fits, possibly shrink fits. - Design of clamping connections with separated, or one-side cut hub. - Strength check of designed couplings. - Check of interference fit strained by additional radial force with bending moment. - Check of interference fit working at specific service temperature. The calculation is based on data, procedures and algorithms from specialized literature and standards ANSI, ISO, DIN and others. List of standards: ANSI B4.1, ISO 286, DIN 7190. This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
