MITCalc V-Belts Calculation 1.22Design of V-belt transmission
The calculation is designed for a geometrical design and strength check of belt transmissions using V-belts. Application contain a database of belts includes the 24 most frequently used types of v-belts, is developed in MS Excel, is multi-language and supports Imperial and Metric units. Is based on ANSI, RMA, ISO, DIN and BS standards and support many 2D and 3D CAD systems.
MITCalc V-Belts Calculation 1.22 details
|Released:||Jul 11, 2017|
|File size:||2.42 MB|
|Keywords:||Belt, V-belt, V-belt transmission, design, strength check, Narrow V-Belts ANSI/RMA IP-22, Traditional V-Belts ANSI/RMA IP-20, Light Duty V-Belts ANSI/RMA IP-23, DIN 7753, DIN 2211, DIN 2215, ISO 4184, DXF, CAD|
Windows 10 Blog
- Microsoft released Windows 10 2004
- The autumn version of Windows 10 is available for everyone through Windows Update
- Microsoft is going to make changes to Windows 10. New features will be independent of the system version
- Windows 10 gives users more control over optional updates
- Windows 7 has the last month of its life. What this means for users
MITCalc V-Belts Calculation for Windows 10 - Full description

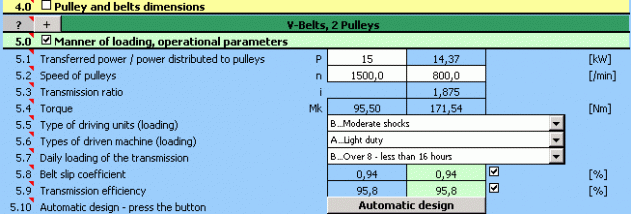

The calculation is designed for a geometrical design and strength check of belt transmissions using V-belts. Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following main tasks: - Calculation for 2 or 3 pulleys. - Automatic design of a transmission with the minimum of input requirements. - Design and calculation of geometrical parameters (diameters of pulleys, axis distances, length of the belt, weight of the transmission) - Calculation of strength parameters (power transferred by the belt, number of belts, efficiency, etc.) - Calculation of force conditions (prestressing, axis loading of the pulleys, etc.) - Support of 2D and 3D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD, BricsCAD, ZWCAD, ProgeCAD, Autodesk Inventor, SolidWorks, SolidEdge, Creo). The application works with CAD systems and includes respective models of pulleys and belts. The calculations use procedures, algorithms and data from basic documents and standards ANSI, RMA (Rubber Manufacturers Association), ISO, DIN, BS, and basic documents from catalogues of companies CONTITECH (r) and Gates Rubber Company (r). Used standards: Narrow V-Belts ANSI/RMA IP-22; Traditional V-Belts ANSI/RMA IP-20; Light Duty V-Belts ANSI/RMA IP-23; DIN 7753; DIN 2211; DIN 2215; ISO 4184 This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
