ThreeDify Designer 5.6.1

3D modeling, dimensioning and mark-up

ThreeDify Designer is a Windows 3D modeling and visualization application for editing mesh geometry, adding dimensions and marking up model views. Its tools include Boolean operations, extrusion, polygon offsets, mesh healing, voxel conversion and 2D profile generation. CAD and Indoor view modes, clipping planes and associative dimensions support inspection and documentation. It also runs as an ActiveX control in compatible host software, with Visual Basic automation interfaces for scripting.

ThreeDify Designer 5.6.1 details

Author:
License: Trialware
Price: $129.00
Released:
File size: 8.30 MB
Downloads: 292
Keywords: graphic, cad dimensioning tool, 3d modeling software, editor, Windows 10 compatible, 3d mesh editor, DXF file viewer, designer, visualization, ThreeDify Incorporated, x64 software, 3D modeling, 3d model viewer, activex 3d control, viewer, design, ThreeDify Designer, 3d model markup
Author URL: http://www.threedify.com

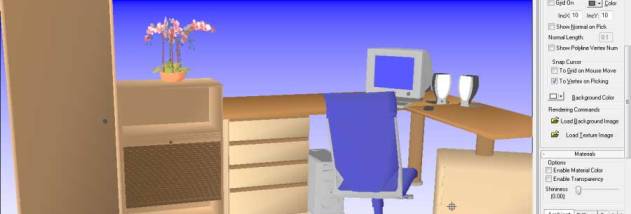

ThreeDify Designer screenshot
ThreeDify DesignerEditorsWindows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 10, Windows 10 x64, Windows 11

User Rating: 0 (0 votes)

Windows 10

x32

Windows 10

x64

ThreeDify Designer Awards

Windows 10 download editor's pick

ThreeDify Designer for Windows 10 - Full description

ThreeDify Designer is a Windows application for creating, editing, dimensioning and viewing 3D models, with tools for technical visualization and 2D mark-up. It is intended for designers and CAD users who need to work with mesh geometry as well as inspect and annotate models. Its dual-mode design also makes it available as an ActiveX control, allowing the application interface and modeling features to be embedded in compatible host software.

The modeling tools cover geometry creation and modification. Boolean operations combine or subtract 3D meshes and 2D polygons, while local vertex and face editing supports adjustments to specific parts of a model. Users can extrude geometry by a set height or along a polyline path, offset polygons, and generate 2D profiles from 3D models. For work that starts with contour data, the software can reconstruct solids from parallel contours. Mesh healing tools help repair model geometry, and conversion to voxel models provides another way to represent 3D objects.

For inspection and technical communication, Designer provides CAD and Indoor view modes, user-defined clipping planes, and associative 3D dimensions. Associative dimensions remain connected to model geometry, making them useful when documenting measurements during design changes. Two-dimensional mark-up tools let users add visual notes to a model view. Unlimited undo and redo support experimentation and correction while editing.

The program uses an import and export plug-in architecture, with support for a broad range of 3D model and image formats through its file-format plug-ins. The architecture also allows third-party developers to create importers and exporters. In ActiveX control mode, the application's GUI and features are accessible within compatible hosts, including Microsoft Office applications and Internet Explorer. Built-in Visual Basic automation interfaces are available for users who want to script operations; basic use of the control does not require custom programming.

ThreeDify Designer is trialware for Windows, including Windows 10 and Windows 11. Its compact implementation is designed to load quickly, which can be useful when it is embedded in another application. It suits workflows involving mesh editing, dimensioning, model review, visual annotation and integration of 3D capabilities into ActiveX-based software.
